Quick Guide (PDF)Powerpack and WFS Battery Information
Specifications and care for the rechargeable lithium-ion polymer (LiPo) batteries in InkMachines Powerpacks and WFS X2. The ratings below are nominal battery ratings, not the adjustable power supply output.

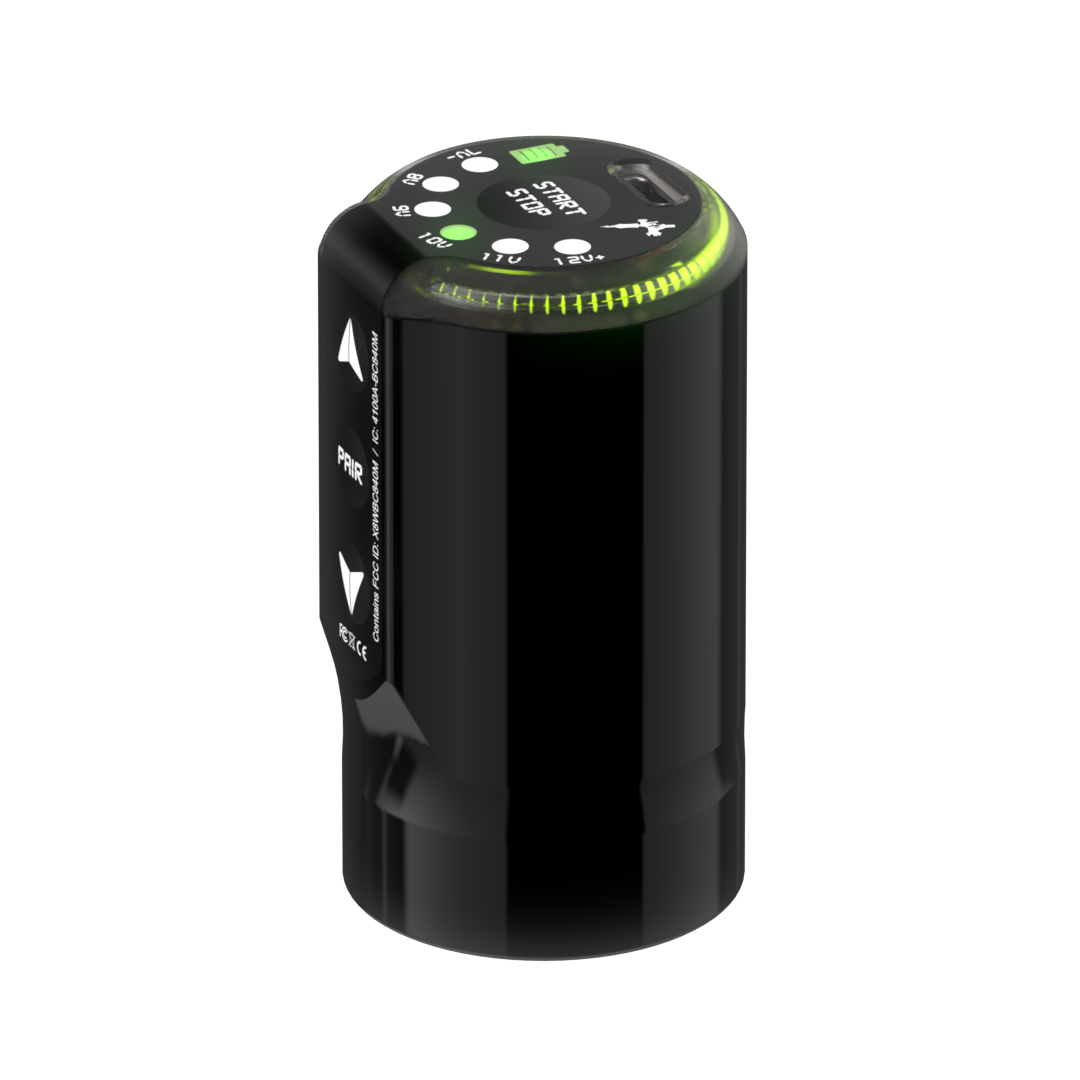

Cobra Powerpack
Cobra tattoo machines
- Chemistry
- LiPo
- Nominal voltage
- 3.8 V
- Rated capacity
- 2760 mAh
- Nominal energy
- 10.488 Wh
Three 920 mAh cells connected in parallel (1S3P). Nominal battery voltage is different from the regulated output voltage supplied to the machine.
Product manual (PDF)
X2 Powerpack for Scorpion
Scorpion X2 tattoo machines
- Chemistry
- LiPo
- Nominal voltage
- 3.7 V
- Rated capacity
- 2700 mAh
- Nominal energy
- 9.99 Wh
Nominal energy is calculated from the battery voltage and rated capacity.
Product manual (PDF).png)

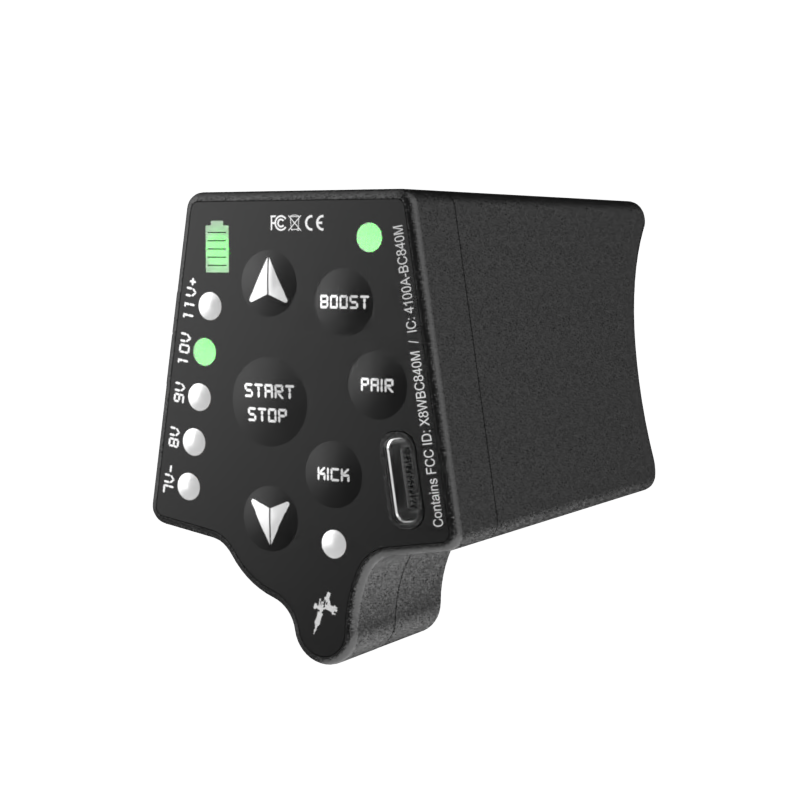

X2 Powerpack for Dragonfly / Stingray
Dragonfly X2 and Stingray X2 tattoo machines
- Chemistry
- LiPo
- Nominal voltage
- 3.7 V
- Rated capacity
- 1600 mAh
- Nominal energy
- 5.92 Wh
Nominal energy is calculated from the battery voltage and rated capacity.
Product manual (PDF)

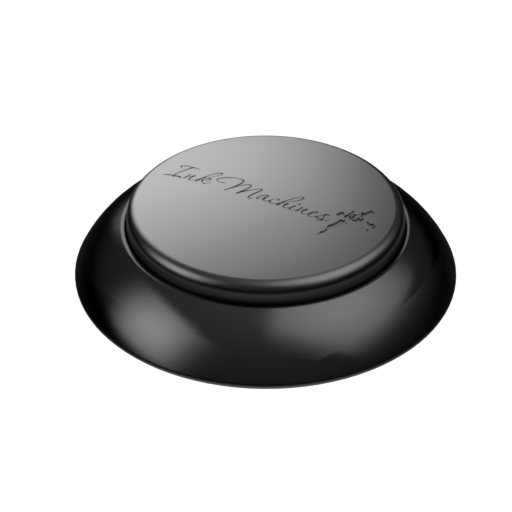

WFS X2 Wireless Foot Switch
Compatible InkMachines X2 systems and powerpacks
- Chemistry
- LiPo
- Nominal voltage
- 3.7 V
- Rated capacity
- 550 mAh
- Nominal energy
- 2.035 Wh
Built-in rechargeable LiPo battery, size/article code PD 652533. A replacement must also match the protection circuit, connector, polarity and fit; a matching size code alone does not establish compatibility.
Product manual (PDF)Charging and battery safety
- Use only compatible charging equipment as described in the product manual. Powerpacks and WFS X2 use USB charging; compatible Powerpacks can also be charged on their matching TPS charger bay.
- Keep batteries dry and away from excessive heat. Do not short-circuit, crush, puncture or open a battery cell.
- Stop using or charging the product if its battery is swollen, damaged, leaking or unusually hot. Contact InkMachines for assistance.
- Do not immerse or rinse the products. Follow the cleaning instructions in the product manual and prevent liquid entering the housing or connectors.
Battery replacement and service
Use a Powerpack intended for the corresponding machine. Do not dismantle the Powerpack or replace its internal cells without model-specific instructions. Contact InkMachines for service and compatible replacement options.
WFS X2 contains a plug-connected battery. Replacement requires the correct cell, protection circuit, connector, polarity and dimensions. Contact InkMachines before ordering or fitting a replacement; a similar battery model number or connector name is not sufficient.
Recycling
Do not dispose of batteries or electronic equipment in household waste. Take them to an approved collection point. Protect exposed battery terminals against short circuits. Do not open, crush or discharge cells for disposal. Ask the collection operator for instructions for damaged batteries.
